Silvertone 2048 Ch= 528.53792 Order=57G 2048
Sears, Roebuck & Co.; Chicago (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Sears, Roebuck & Co.; Chicago (IL)
- Year
- 1961/1962
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 141434
-
- Brand: Silvertone
Sams Photofact Folders
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superhet with RF-stage; ZF/IF 455/10700 kHz
- Wave bands
- Broadcast (BC) and FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 110 - 120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Silvertone 2048 Ch= 528.53792 Order=57G 2048 - Sears, Roebuck & Co.; Chicago
- Shape
- Tablemodel with Clock ((Alarm-) Clock Radio).
- Dimensions (WHD)
- 15 x 6.5 x 5.5 inch / 381 x 165 x 140 mm
- Notes
- The Sears, Roebuck & Co. Model Silvertone 2048 Chassis 528.53792 is an AC Operated 6 Tube FM-AM Receiver with Electric Clock.
- Price in first year of sale
- 57.95 $
- Literature/Schematics (1)

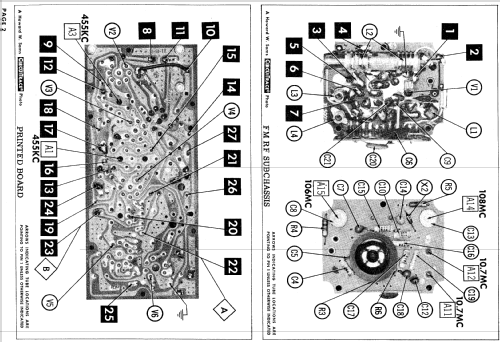

- Photofact Folder, Howard W. SAMS (Date 10-62, Set 600, Folder 14)
- Literature/Schematics (4)
- Sears, Roebuck Catalogs (Silvertone) (Fall/Winter 1961, page 1233.)
- Author
- Model page created by Egon Penker. See "Data change" for further contributors.
