Silvertone 2068 Ch= 528.59740 Order=57X 2068N
Sears, Roebuck & Co.; Chicago (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Sears, Roebuck & Co.; Chicago (IL)
- Year
- 1962 ?
- Category
- Audio Amplifier or -mixer
- Radiomuseum.org ID
- 254943
-
- Brand: Silvertone
- Number of Tubes
- 5
- Main principle
- Audio-Amplification; 2 AF stage(s)
- Wave bands
- - without
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / AC: 60 cycles, 110-120 Volt
- Loudspeaker
- 4 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: Silvertone 2068 Ch= 528.59740 Order=57X 2068N - Sears, Roebuck & Co.; Chicago
- Shape
- Console, Lowboy (legs < 50 %).
- Dimensions (WHD)
- 40 x 29 x 15.25 inch / 1016 x 737 x 387 mm
- Notes
-
The Sears Silvertone 2068 is an AC operated 5 tube stereo phonograph. Has reverb unit and 4 speed record changer. Has Qty(2) PM 10" speakers and Qty(2) PM 4" speakers.
The following models use the same schematic and chassis but have different cabinets:
Model Cabinet 2067 Mahogany veneer 2068 Limed oak veneer 2069 Walnut veneer See details and summaries about Sears catalogs etc. This model was manufactured for Sears by Warwick Electronics, Chicago Ill. (Sears Manufacturer Source Number Code 528).
- Price in first year of sale
- 174.95 $
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Set 605, folder 10 Dated 11-62)
- Literature/Schematics (2)

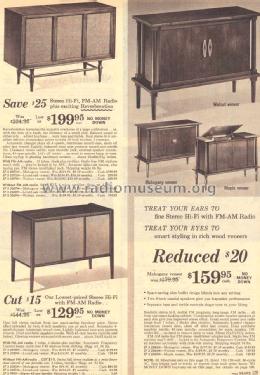

- Sears, Roebuck Catalogs (Silvertone) (Winter 1962, page 129.)
- Author
- Model page created by Noemi Erb. See "Data change" for further contributors.
