• Country
• United States of America (USA)

• Manufacturer / Brand
• Sears, Roebuck & Co.; Chicago (IL)

• Year
• 1968

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 128479

• • Brand: Silvertone

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 105-120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm

• Material
• Wooden case

• from Radiomuseum.org
• Model: Silvertone 2093 Ch= 132.43101 Order= 57H 2093 [Walnut] - Sears, Roebuck & Co.; Chicago

• Shape
• Tablemodel with Clock ((Alarm-) Clock Radio).

• Dimensions (WHD)
• 14 x 8 x 4.5 inch / 356 x 203 x 114 mm

• Price in first year of sale
• 42.95 $

• Source of data
• -- Collector info (Sammler)

• Literature/Schematics (4)

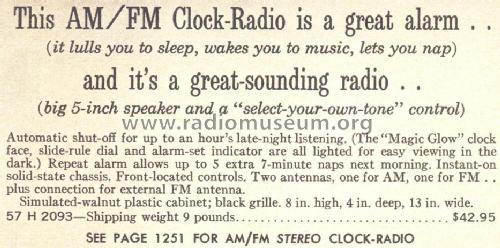

• Sears, Roebuck Catalogs (Silvertone) (Fall/Winter 1968, page 1249.)

• Author
• Model page created by a member from A. See "Data change" for further contributors.
