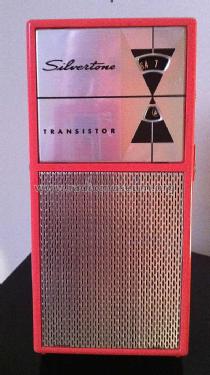

Silvertone 212 Ch= 132.43601

• Country
• United States of America (USA)

• Manufacturer / Brand
• Sears, Roebuck & Co.; Chicago (IL)

• Year
• 1959 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 107920

• • Brand: Silvertone

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 6

• Semiconductors
• 2N194 2N333 2N333 2N306 2N1102 2N1102

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 5 AF stage(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Dry Batteries / PP4: 1 x 9 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 2.75 inch = 7 cm

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Silvertone 212 Ch= 132.43601 - Sears, Roebuck & Co.; Chicago

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 76 x 162 x 40 mm / 3 x 6.4 x 1.6 inch

• Notes

• Battery operated transistorized portable AM receiver. Sams photofact set 492 folder 21 date 7-60 features the Silvertone models 211 BLACK, 212 CORAL and 213 ICE BLUE as the same schematic.

• Net weight (2.2 lb = 1 kg)
• 0.4 kg / 0 lb 14.1 oz (0.881 lb)

• Price in first year of sale
• 26.95 USD

• Mentioned in
• Sears, Roebuck Catalogs (Silvertone) (Spring/Summer 1960, page 929)

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Set 492, Folder 21, July 1960)

• Literature/Schematics (2)
• Sears, Roebuck Catalogs (Silvertone) (Fall/Winter 1959, page 1087.)

• Author
• Model page created by Peter Hoddow. See "Data change" for further contributors.
