• Country
• United States of America (USA)

• Manufacturer / Brand
• Sears, Roebuck & Co.; Chicago (IL)

• Year
• 1961

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 107914

• • Brand: Silvertone

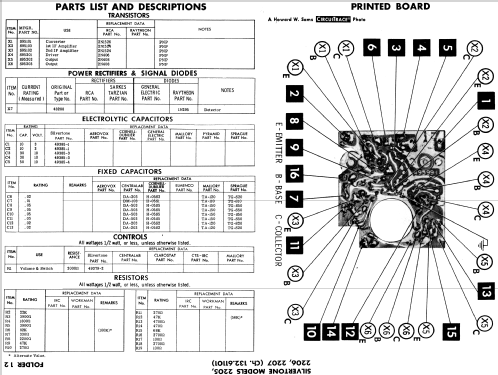

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 6

• Semiconductors
• 2N1526 2N1524 2N1524 2N406 2N408 2N408

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Dry Batteries / 9 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 1.75 inch = 4.4 cm

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

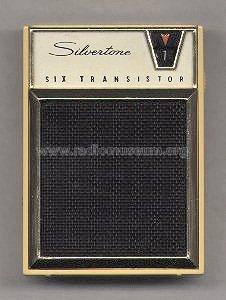

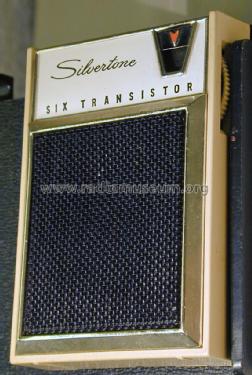

• Model: Silvertone 2206 Ch= 132.61101 Order=57G 2206 - Sears, Roebuck & Co.; Chicago

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 2.5 x 3.5 x 1 inch / 64 x 89 x 25 mm

• Notes

• Model	Cabinet
  2205	Black
  2206	Gold Color
  2207	Ice Blue



• Net weight (2.2 lb = 1 kg)
• 0.150 kg / 0 lb 5.3 oz (0.33 lb)

• Price in first year of sale
• 18.95 $

• Mentioned in
• -- Collector info (Sammler)

• Literature/Schematics (4)
• Sears, Roebuck Catalogs (Silvertone) (Fall/Winter 1961, page 1234.)

• Author
• Model page created by Peter Hoddow. See "Data change" for further contributors.
