Silvertone 22671 Order= 57H 22671
Sears, Roebuck & Co.; Chicago (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Sears, Roebuck & Co.; Chicago (IL)
- Year
- 1968/1969
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 254123
-
- Brand: Silvertone
- Number of Transistors
- 11
- Semiconductors
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast (BC) and FM or UHF.
- Power type and voltage
- Batteries / addl. power jack
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 3 inch = 7.6 cm
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Silvertone 22671 Order= 57H 22671 - Sears, Roebuck & Co.; Chicago
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 8 x 7 x 3 inch / 203 x 178 x 76 mm
- Notes
-
The Sears Silvertone 22671 is an AC/battery powered portable AM/FM radio. Has built-in AM antenna and telescoping swivel-type FM antenna. FM has AFC. This model was sold with an AC adapter, batteries and earphone.
The following models use the same schematic and cabinet but have different cabinet colors:
Model Cabinet 22671 Black with blue and green grille 22681 Char-brown with burnt orange grille
- Price in first year of sale
- 29.50 $
- Literature/Schematics (2)

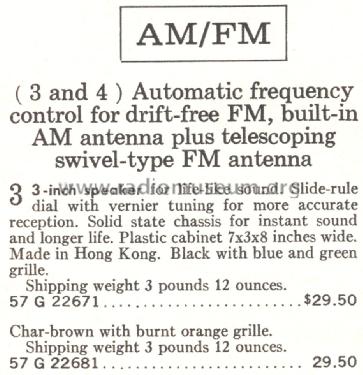

- Sears, Roebuck Catalogs (Silvertone) (Fall/Winter 1969, page 917.)
- Literature/Schematics (3)
- Sears, Roebuck Catalogs (Silvertone) (Fall/Winter 1968, page 1247.)
- Author
- Model page created by Noemi Erb. See "Data change" for further contributors.
