• Country
• United States of America (USA)

• Manufacturer / Brand
• Sears, Roebuck & Co.; Chicago (IL)

• Year
• 1976 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 248746

• • Brand: Silvertone

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, more than 2 SW bands plus FM or UHF.

• Power type and voltage
• Line / Batteries (any type) / 6 x 1.5 or 60 cycles, 120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org

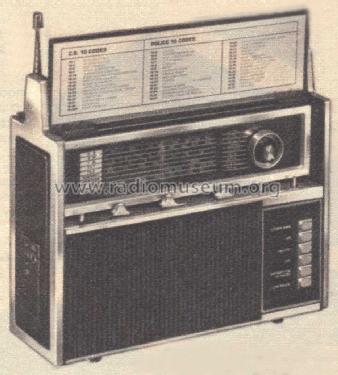

• Model: Silvertone 2431 Order= 61H 24316 - Sears, Roebuck & Co.; Chicago

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 13 x 11.125 x 4.25 inch / 330 x 283 x 108 mm

• Price in first year of sale
• 69.50 $

• Mentioned in
• Sears, Roebuck Catalogs (Silvertone) (Fall/Winter 1976, page 1213.)

• Author
• Model page created by Noemi Erb. See "Data change" for further contributors.
