• Country
• United States of America (USA)

• Manufacturer / Brand
• Sears, Roebuck & Co.; Chicago (IL)

• Year
• 1959 ?

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 143085

• • Brand: Silvertone

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 1

• Valves / Tubes
• 25L6GT

• Main principle
• Audio-Amplification; 1 AF stage(s)

• Wave bands
• - without

• Details
• Rec.Player+Audio.Amp+LS

• Power type and voltage
• Alternating Current supply (AC) / 105 - 125 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org
• Model: Silvertone 250 Ch= 528.59331 - Sears, Roebuck & Co.; Chicago

• Shape
• Tablemodel, with any shape - general.

• Notes

• AC operated 1 tube audio amplifier. Sams photofact set 480 folder 12 date 4-60 features the Silvertone model 250 with chassis 52859330 and chassis 52859331, model 252 with chassis 52859350 and chassis 52859351 and model 255 with chassis 52859360 as the same schematic. Model 250 and 252 with 4 speed manual record player and model 255 with 4 speed automatic record player.

• Literature/Schematics (1)

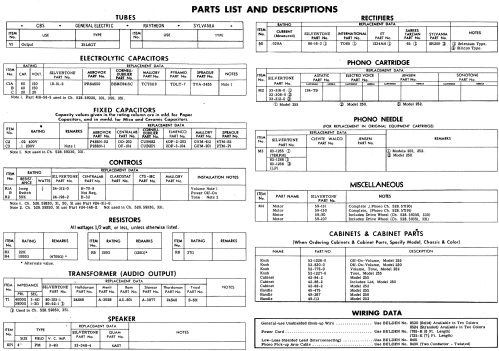

• Photofact Folder, Howard W. SAMS (Set 480 folder 12 date 4-60)

• Author
• Model page created by Peter Hoddow. See "Data change" for further contributors.
