Silvertone 25 Ch= 132.48400 Order=57K 25
Sears, Roebuck & Co.; Chicago (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Sears, Roebuck & Co.; Chicago (IL)
- Year
- 1959/1960 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 147184
-
- Brand: Silvertone
Sams photofact.
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 455/10700 kHz
- Wave bands
- Broadcast (BC) and FM or UHF.
- Power type and voltage
- AC/DC-set / 110 - 120 Volt
- Loudspeaker
- 2 Loudspeakers / Ø 5 inch = 12.7 cm
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Silvertone 25 Ch= 132.48400 Order=57K 25 - Sears, Roebuck & Co.; Chicago
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Dimensions (WHD)
- 15 x 7 x 6 inch / 381 x 178 x 152 mm
- Notes
-

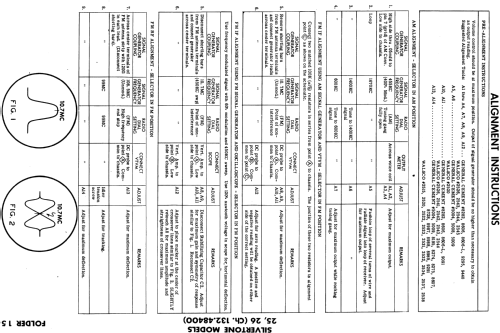

AC - DC operated AM - FM receiver. Sams photofact set 484 folder 15 date 5-60 features the Silvertone models 25 and 26 as the same schematic.
Model
Cabinet
25
Brown
26
Ivory
- Price in first year of sale
- 56.95 $
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Set 484 folder 15 date 5-60)
- Literature/Schematics (2)
- Machine Age to Jet Age II (page 253.)
- Literature/Schematics (4)
- Sears, Roebuck Catalogs (Silvertone) (Spring/Summer 1960, page 928.)
- Author
- Model page created by Peter Hoddow. See "Data change" for further contributors.
