Silvertone 3000 Ch= 132.67501 Order=57H 3000
Sears, Roebuck & Co.; Chicago (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Sears, Roebuck & Co.; Chicago (IL)
- Year
- 1962/1963
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 251716
-
- Brand: Silvertone
- Number of Tubes
- 4
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 4 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- AC/DC-set / Either AC: 25 to 60 cycles, 105 - 120V or DC: 105 - 120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Silvertone 3000 Ch= 132.67501 Order=57H 3000 - Sears, Roebuck & Co.; Chicago
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 10 x 5 x 4 inch / 254 x 127 x 102 mm
- Notes
-
The Sears Silvertone 3000 is an AC/DC operated 4 tube AM band receiver. AM band tuning range is 535 to 1670kHz. Cabinet color is Beige.
SAMS Set 581 Folder 11 is for model 2000 with chassis 132.63901, however the SAMS Index lists this is also applicable for this model with the exception of model 3000 using chassis 132.67501. The differences between the chassis are unknown at this time.
See details and summaries about Sears catalogs etc. This model was manufactured for Sears by Noblitt-Sparks, Ind. (Sears Manufacturer Source Number Code 132).
- Price in first year of sale
- 8.99 $
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Set 581 Floder 11 Dated 6-62)
- Literature/Schematics (2)

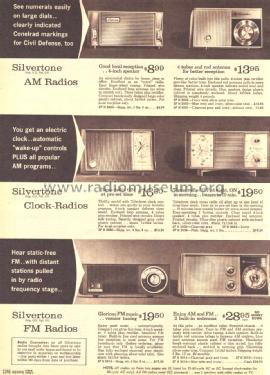

- Sears, Roebuck Catalogs (Silvertone) (Fall/Winter 1962, page 1246.)
- Literature/Schematics (3)
- Sears, Roebuck Catalogs (Silvertone) (Spring/Summer 1963, page 1274.)
- Author
- Model page created by Noemi Erb. See "Data change" for further contributors.
