Silvertone 3002 Ch= 132.66701 Order=57H 3002 1962

Sears, Roebuck & Co.; Chicago (IL)

Data
Forum
Pictures
Collections

  • Year
  • 1962/1963
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 251715
    • Brand: Silvertone

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • AC/DC-set / Either AC: 25 to 60 cycles, 105 to 120V or DC: 105 to 120 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Silvertone 3002 Ch= 132.66701 Order=57H 3002 [1962] - Sears, Roebuck & Co.; Chicago
  • Shape
  • Tablemodel without push buttons, Mantel/Midget/Compact up to 14
  • Dimensions (WHD)
  • 10 x 6 x 4 inch / 254 x 152 x 102 mm
  • Notes

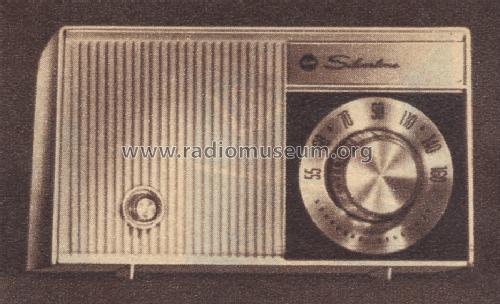

  • The Sears Silvertone 3002 is an AC/DC operated 5 tube AM Receiver.

    The following models use the same schematic and cabinet but have different cabinet colors:

    Model Number Cabinet Color
    3001 Charcoal gray and ivory, without trim
    3002 Ivory with silver-color trim
    3003 Blue mist and ivory, silver-color trim

    See details and summaries about Sears catalogs etc. This model was manufactured for Sears by Noblitt-Sparks, Ind. (Sears Manufacturer Source Number Code 132).

  • Price in first year of sale
  • 13.95 $
  • Author
  • Model page created by Noemi Erb. See "Data change" for further contributors.
