• Country
• United States of America (USA)

• Manufacturer / Brand
• Sears, Roebuck & Co.; Chicago (IL)

• Year
• 1953–1955

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 89517

• • Brand: Silvertone

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• 12BE6 12AV6 50L6GT 35W4

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 4 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 105-120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

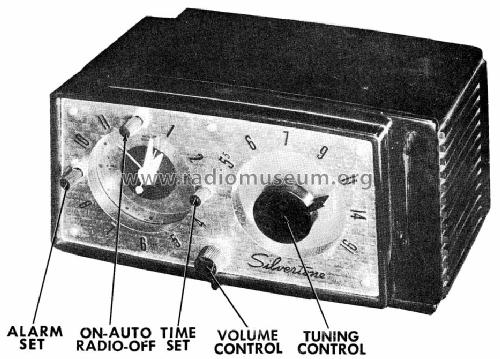

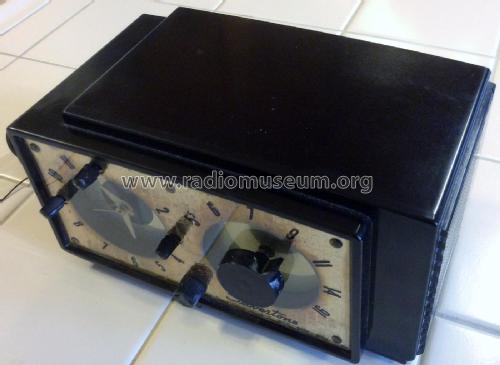

• Model: Silvertone 3007 Ch= 757.120 Order=57D 03007 - Sears, Roebuck & Co.; Chicago

• Shape
• Tablemodel with Clock ((Alarm-) Clock Radio).

• Dimensions (WHD)
• 9.5 x 5.5 x 5 inch / 241 x 140 x 127 mm

• Notes

• The Silvertone models 3007 (color Ebony), 3008 (color Ivory) and 3009 (color Green) with chassis 757.120 are AC operated AM superheterodyne receivers with electric clock.

• Price in first year of sale
• 19.95 $

• Source of data
• Machine Age to Jet Age II

• Circuit diagram reference

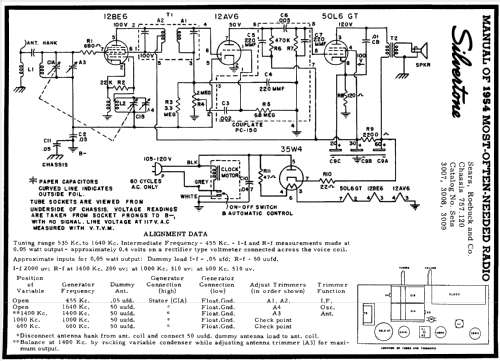

• Beitman Radio Diagrams Vol. 14, 1954

• Literature/Schematics (1)

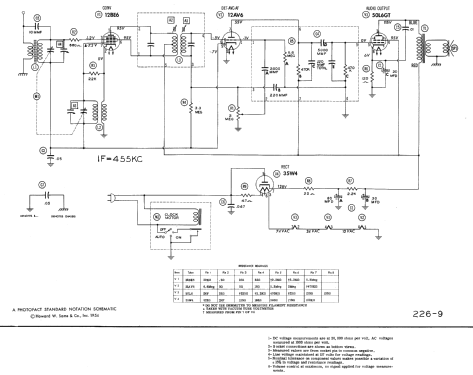

• Photofact Folder, Howard W. SAMS (Date 1-54, set 226, folder 9)

• Literature/Schematics (3)

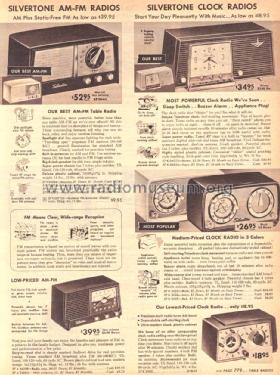

• Sears, Roebuck Catalogs (Silvertone) (Fall & Winter 1953/54 page 887. Spring & Summer 1954 page 773. Fall & Winter 1954/55 page 919.)

• Literature/Schematics (4)
• Sears, Roebuck Catalogs (Silvertone) (Spring & Summer 1955, page 779.)

• Author
• Model page created by a member from D. See "Data change" for further contributors.
