Silvertone 3017 Ch= 132.68801 Order=57H 3017
Sears, Roebuck & Co.; Chicago (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Sears, Roebuck & Co.; Chicago (IL)
- Year
- 1962/1963
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 142224
-
- Brand: Silvertone
Sams Photofact Folders
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superhet with RF-stage; ZF/IF 455/10700 kHz
- Wave bands
- Broadcast (BC) and FM or UHF.
- Power type and voltage
- AC/DC-set / 110 - 120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Silvertone 3017 Ch= 132.68801 Order=57H 3017 - Sears, Roebuck & Co.; Chicago
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 14 x 7 x 5 inch / 356 x 178 x 127 mm
- Notes
-
5" x 7" PM elliptical speaker.
The Sears, Roebuck & Co Model 3017 is an AC/DC Operated 6 Tube AM-FM Receiver.Model Chassis Cabinet Color 3017 132.68801 Charcoal gray and ivory 3017 132.68802 Charcoal gray and ivory 3018 132.68801 Ivory 3018 132.68802 Ivory
- Price in first year of sale
- 37.95 $
- Literature/Schematics (1)

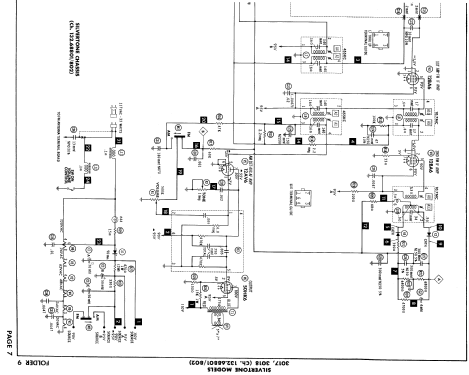

- Photofact Folder, Howard W. SAMS (Date 7-63, Set 646, Folder 9)
- Literature/Schematics (3)

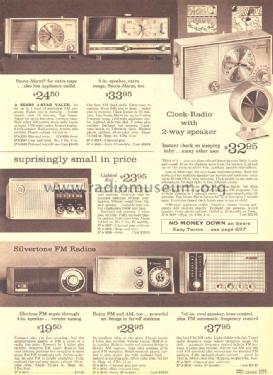

- Sears, Roebuck Catalogs (Silvertone) (Spring/Summer 1963, page 1275.)
- Literature/Schematics (4)

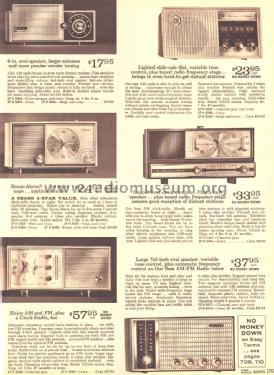

- Sears, Roebuck Catalogs (Silvertone) (Fall/Winter 1962, page 1247.)
- Author
- Model page created by Egon Penker. See "Data change" for further contributors.
