Silvertone Medalist Tuner 3028 Order= 57 A 3028
Sears, Roebuck & Co.; Chicago (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Sears, Roebuck & Co.; Chicago (IL)
- Year
- 1963
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 255692
-
- Brand: Silvertone
- Number of Tubes
- 8
- Valves / Tubes
- unknown_Tube unknown_Magic-Eye
- Main principle
- Superhet with RF-stage
- Wave bands
- Broadcast (BC) and FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 110-120 Volt
- Loudspeaker
- - For headphones or amp.
- Material
- Leather / canvas / plastic - over other material
- from Radiomuseum.org
- Model: Silvertone Medalist Tuner 3028 Order= 57 A 3028 - Sears, Roebuck & Co.; Chicago
- Shape
- Book-shelf unit.
- Dimensions (WHD)
- 13 x 4.5 x 9 inch / 330 x 114 x 229 mm
- Notes
-

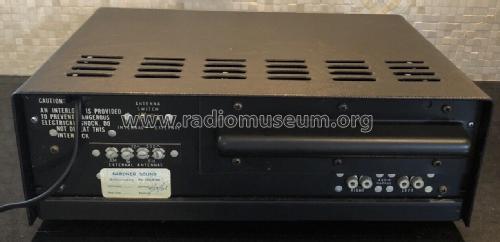

The Sears Silvertone 3028 is an AC operated 8 tube AM/FM and FM stereo tuner. Has RF gain stage for both AM and FM bands. Also has internal ferrite rod antenna for AM and and uses line cord as FM antenna with provisions for an external FM antenna. Cabinet is black leatherette with silver colored front panel.
- Price in first year of sale
- 89.95 $
- Literature/Schematics (2)

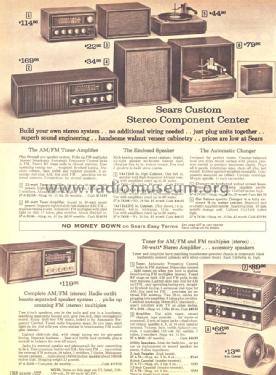

- Sears, Roebuck Catalogs (Silvertone) (Spring/Summer 1963, page 1268.)
- Author
- Model page created by Noemi Erb. See "Data change" for further contributors.
