Silvertone 3030 Ch= 528.54400 Order=57H 3030
Sears, Roebuck & Co.; Chicago (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Sears, Roebuck & Co.; Chicago (IL)
- Year
- 1962/1963
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 251719
-
- Brand: Silvertone
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 1 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Alternating Current supply (AC) / 60 cycles, 105 to 120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Silvertone 3030 Ch= 528.54400 Order=57H 3030 - Sears, Roebuck & Co.; Chicago
- Shape
- Tablemodel with Clock ((Alarm-) Clock Radio).
- Dimensions (WHD)
- 10 x 7 x 4 inch / 254 x 178 x 102 mm
- Notes
-
The Sears Silvertone 3030 is an AC operated 5 tube AM receiver with clock. The AM band tuning range is 535 to 1635kHz. Cabinet color is gray.
SAMS Photofact states model 4030 uses same chassis and cabinet, but cabinet back has different part number.
- Price in first year of sale
- 16.50 $
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Set 665, Folder 10 Dated 11-63)
- Literature/Schematics (2)

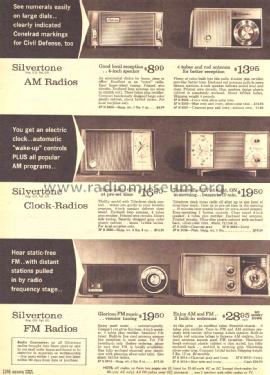

- Sears, Roebuck Catalogs (Silvertone) (Fall/Winter 1962, page 1246.)
- Literature/Schematics (3)
- Sears, Roebuck Catalogs (Silvertone) (Spring/Summer 1963, page 1274.)
- Author
- Model page created by Noemi Erb. See "Data change" for further contributors.
