Silvertone 3055 Ch= 132.056
Sears, Roebuck & Co.; Chicago (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Sears, Roebuck & Co.; Chicago (IL)
- Year
- 1953–1955
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 129972
-
- Brand: Silvertone
SAMS
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 8
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s) 8 FM circuit(s)
- Wave bands
- Broadcast (BC) and FM or UHF.
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 105 - 120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Power out
- 0.8 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org

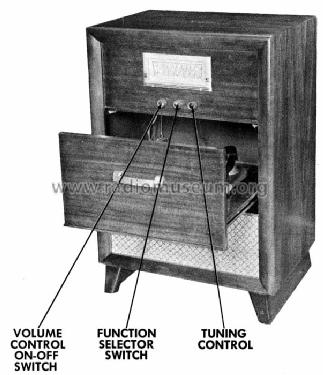

- Model: Silvertone 3055 Ch= 132.056 - Sears, Roebuck & Co.; Chicago
- Shape
- Console, Lowboy (legs < 50 %).
- Dimensions (WHD)
- 21 x 31.25 x 15.5 inch / 533 x 794 x 394 mm
- Notes
-
This model is Limed oak. The Silvertone models 3054 and 3055 are AC operated radio-phono compinations with a 3 speed record changer. See also the models with AM reception only with a very similar case, models 3052 and 3053. The loudspeaker size is 5" x 7".
- Price in first year of sale
- 129.95 $
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Date 9-54, set 250, folder 18)
- Literature/Schematics (3)
- Sears, Roebuck Catalogs (Silvertone) (Fall & Winter 1954/55, page 910.)
- Author
- Model page created by Ernst Erb. See "Data change" for further contributors.
