Silvertone 3090 Ch= 528.54190, 528.59960
Sears, Roebuck & Co.; Chicago (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Sears, Roebuck & Co.; Chicago (IL)
- Year
- 1963
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 255285
-
- Brand: Silvertone
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 16
- Valves / Tubes
- 6C9_Twin-Tetrode 6BE6 6AU6 6BA6 6AU6 6AL5 6EZ8 12AT7 6EU7 EM84 12AX7 12AX7 6BQ5 6BQ5 6BQ5 6BQ5
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast (BC) and FM or UHF.
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 60 cycles, 120 Volt
- Loudspeaker
- 4 Loudspeakers
- Power out
- 20 W (undistorted)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Silvertone 3090 Ch= 528.54190, 528.59960 - Sears, Roebuck & Co.; Chicago
- Shape
- Console, Lowboy (legs < 50 %).
- Dimensions (WHD)
- 55 x 31 x 17 inch / 1397 x 787 x 432 mm
- Notes
-
The Sears Silvertone 3090 is an AC operated 15 tube combination AM/FM/FM Stereo receiver and phonograph. Has Qty(2) PM 12" speakers and Qty(2) PM tweeter speakers. Also has 4 speed record changer.
The following models use the same schematic and chassis but have different cabinets:

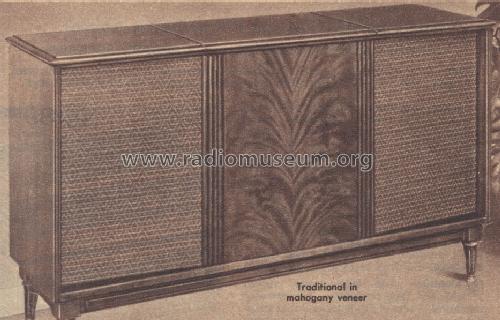

Model Cabinet 3090 Traditional style mahogany veneer 3092 Danish style walnut veneer 3093 Provincial style fruitwood veneer
- Price in first year of sale
- 319.95 $
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Set 643, Folder 11, August 1963)
- Literature/Schematics (2)
- Sears, Roebuck Catalogs (Silvertone) (Spring/Summer 1963, page 1267.)
- Author
- Model page created by Noemi Erb. See "Data change" for further contributors.
