Silvertone 3200 Ch= 528.259

Sears, Roebuck & Co.; Chicago (IL)

Data
Forum
Pictures
Collections

  • Year
  • 1953/1954
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 130024
    • Brand: Silvertone

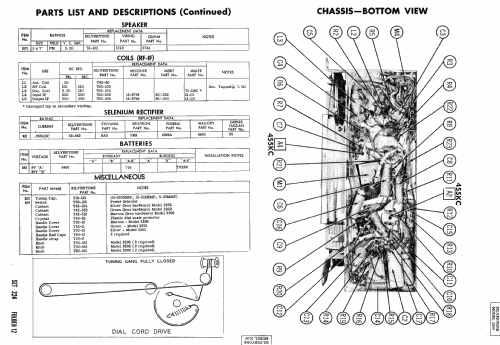

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)
  • Tuned circuits
  • 7 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Line / Batteries (any type) / 117 AC/DC or 9 & 90 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Silvertone 3200 Ch= 528.259 - Sears, Roebuck & Co.; Chicago
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Notes

  • The Silvertone models 3200 (Color = Maroon), 3202 ( = Green) and 3203 ( = Silver) from Sears Roebuck & Co. with the chassis 528.259 are three power portable superheterodyne receivers. It seems that according to Beitman Radio Diagram the models Silvertone 2200, 2202 and 2203 use the same chassis and come also with chassis 528.229. We list all of them but don't know the differences between those chassis (Rider shows the same content) and of the cases (3 to 2 thousand).

  • Author
  • Model page created by Ernst Erb. See "Data change" for further contributors.
