• Country
• United States of America (USA)

• Manufacturer / Brand
• Sears, Roebuck & Co.; Chicago (IL)

• Year
• 1953/1954

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 130026

• • Brand: Silvertone

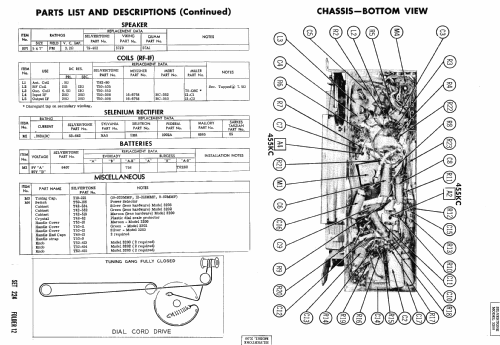

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 1U4 1R5 1U4 1U5 3V4

• Main principle
• Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Line / Batteries (any type) / 117 AC/DC or 9 & 90 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Metal case

• from Radiomuseum.org

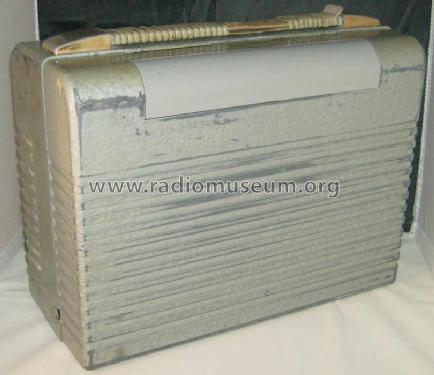

• Model: Silvertone 3203 Ch= 528.259 Order=57D 03203 [tubes] - Sears, Roebuck & Co.; Chicago

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 13.25 x 10 x 5.75 inch / 337 x 254 x 146 mm

• Notes

• The Silvertone models 3200 (Color = Maroon), 3202 ( = Green) and 3203 ( = Silver) from Sears Roebuck & Co. with the chassis 528.259 are three power portable superheterodyne receivers. It seems that according to Beitman Radio Diagram the models Silvertone 2200, 2202 and 2203 use the same chassis and come also with chassis 528.229. We list all of them but don't know the differences between those chassis (Rider shows the same content) and of the cases (3 to 2 thousand).

  Oversize 5-7-inch Speaker. Less battery.

  There is also a transistor radio Silvertone 3203 from 1961/1962 - see Photofact 598-13.

• Price in first year of sale
• 47.95 $

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Date 12-53, set 224, folder 12)

• Literature/Schematics (3)
• Sears, Roebuck Catalogs (Silvertone) (Fall & Winter 1953/54 page 888. Spring & Summer 1954 page 772.)

• Author
• Model page created by Ernst Erb. See "Data change" for further contributors.

• Other Models

• Here you find 5478 models, 3209 with images and 4184 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Sears, Roebuck & Co.; Chicago (IL)
