Silvertone 4046 Ch= 132.72201 Order=57K 4046

Sears, Roebuck & Co.; Chicago (IL)

Data
Forum
Pictures
Collections

  • Year
  • 1964
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 255097
    • Brand: Silvertone

 Technical Specifications

  • Number of Tubes
  • 7
  • Main principle
  • Superheterodyne (common); ZF/IF 455/10700 kHz; 2 AF stage(s)
  • Tuned circuits
  • 6 AM circuit(s)     9 FM circuit(s)
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Power type and voltage
  • Alternating Current supply (AC) / 60 cycles, 110-120 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Silvertone 4046 Ch= 132.72201 Order=57K 4046 - Sears, Roebuck & Co.; Chicago
  • Shape
  • Tablemodel with Clock ((Alarm-) Clock Radio).
  • Dimensions (WHD)
  • 15 x 6 x 5 inch / 381 x 152 x 127 mm
  • Notes

  • The Sears Silvertone 4046 is an AC operated 7 tube AM/FM clock radio. AM band frequency tuning range is 530-1640kHz. FM band frequency tuning range is 88-108MHz. Has built-in AM and FM antenna´s with porvisions for connecting an external FM antenna. AFC on FM band.

    The following models use the same schematic and cabinet but have different cabinet colors:

    Model Cabinet
    4045 Charcoal gray, ivory
    4046 Ivory

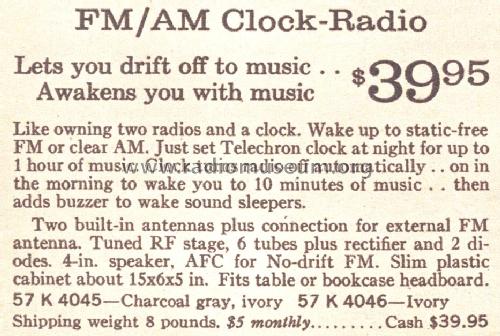

    See details and summaries about Sears catalogs etc. This model was manufactured for Sears by Noblitt-Sparks Ind. (Arvin), Columbus, Indiana (Sears Manufacturer Source Number Code 132).

  • Price in first year of sale
  • 39.95 $
  • Author
  • Model page created by Noemi Erb. See "Data change" for further contributors.
