Silvertone 4070 Ch= 567.34001 & Amp. Ch= 567.35001 Order=57G 04070K
Sears, Roebuck & Co.; Chicago (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Sears, Roebuck & Co.; Chicago (IL)
- Year
- 1954–1956
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 125075
-
- Brand: Silvertone

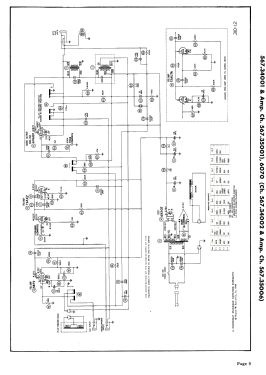

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Tape Recorder
- Power type and voltage
- Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5.25 inch = 13.3 cm
- Material
- Leather / canvas / plastic - over other material
- from Radiomuseum.org
- Model: Silvertone 4070 Ch= 567.34001 & Amp. Ch= 567.35001 Order=57G 04070K - Sears, Roebuck & Co.; Chicago
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 11.5 x 8.75 x 10.75 inch / 292 x 222 x 273 mm
- Notes
-
The Silvertone models 3070,4070 and 6070 are designed for one speed operation. Models 3070, 4070 and 6070 record and play back at a constant speed of 3 3/4" per second. The major difference between the models is in the amplifier used. The model 6070 has a 12AU7A for the pre-amplifier where the models 3070 and 4070 have a 5879 pre-amplifier.
- Price in first year of sale
- 87.98 $
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Set 310 Folder 12 3-1956)
- Literature/Schematics (3)
- Sears, Roebuck Catalogs (Silvertone) (Fall & Winter 1954/55, page 914. Spring/Summer 1955, page 775.)
