• Country
• United States of America (USA)

• Manufacturer / Brand
• Sears, Roebuck & Co.; Chicago (IL)

• Year
• 1963 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 220043

• • Brand: Silvertone

• Number of Tubes
• 14

• Valves / Tubes
• 6C9_Twin-Tetrode 6BE6 6BA6 6BA6 6AU6 EM84 12AU7A 6EU7 12AX7A 12AX7A EL84 EL84 EL84 EL84

• Number of Transistors
• 2

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Details
• Record Player (perh.Changer)

• Power type and voltage
• Alternating Current supply (AC) / 117 Volt

• Loudspeaker
• -Loudspeaker incorporated, but system not known.

• Material
• Wooden case

• from Radiomuseum.org
• Model: Silvertone 4087 / 4088 / 4089 - Sears, Roebuck & Co.; Chicago

• Shape
• Console, Lowboy (legs < 50 %).

• Notes

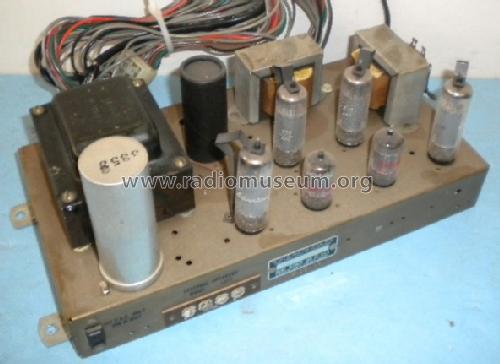

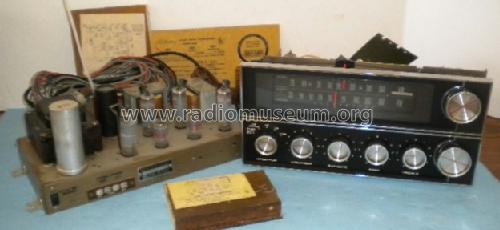

• Stereo console, with Tuner 528-54902, MPX 528-54791 and Amp 528-69201.

• Author
• Model page created by Gottfried Silberhorn. See "Data change" for further contributors.
