Silvertone 4204 Ch= 132.067 Order=57H U4204
Sears, Roebuck & Co.; Chicago (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Sears, Roebuck & Co.; Chicago (IL)
- Year
- 1954–1956
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 130148
-
- Brand: Silvertone
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 8
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s) 7 FM circuit(s)
- Wave bands
- Broadcast (BC) and FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 105-120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 inch = 15.2 cm
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Silvertone 4204 Ch= 132.067 Order=57H U4204 - Sears, Roebuck & Co.; Chicago
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Dimensions (WHD)
- 13.75 x 7.75 x 7 inch / 349 x 197 x 178 mm
- Notes
-
The Silvertone models 4204 (color = Maroon) and 4206 (color = Ivory) with chassis 132.067 are AC operated AM-FM superheterodyne receivers.
- Price in first year of sale
- 52.95 $
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Date 10-54, set 255, folder 13)
- Literature/Schematics (3)

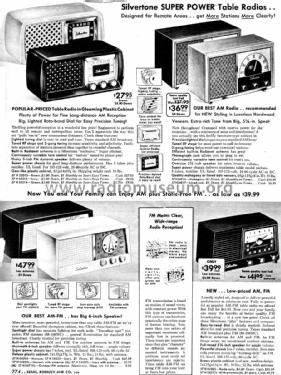

- Sears, Roebuck Catalogs (Silvertone) (Spring & Summer 1954, page 774. Fall & Winter 1954/55, page 919.)
- Literature/Schematics (4)

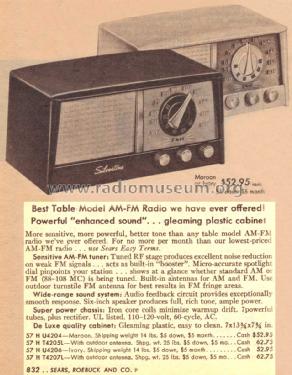

- Sears, Roebuck Catalogs (Silvertone) (Spring & Summer 1956, page 832. Spring/Summer 1955, page 779.)
- Author
- Model page created by Ernst Erb. See "Data change" for further contributors.
