• Country
• United States of America (USA)

• Manufacturer / Brand
• Sears, Roebuck & Co.; Chicago (IL)

• Year
• 1936

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 88262

• • Brand: Silvertone

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 8

• Valves / Tubes
• 6K7G 6A8G 6K7G 6H6G 6G5 6F5G 6N6G 5Y3

• Main principle
• Superhet with RF-stage; ZF/IF 456 kHz

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast, Short Wave(s) and Police.

• Power type and voltage
• Alternating Current supply (AC) / 105-135 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 8 inch = 20.3 cm

• Power out
• 3.5 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

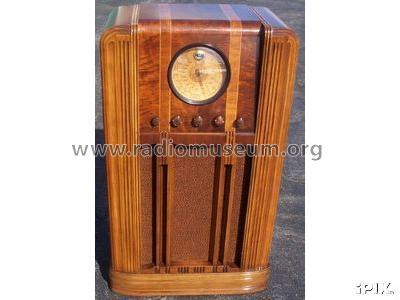

• Model: Silvertone 4585 Ch= 100.151 - Sears, Roebuck & Co.; Chicago

• Shape
• Console with any shape - in general

• Source of data
• Pre-War Consoles

• Circuit diagram reference
• Rider's Perpetual, Volume 9 = 1938 and before

• Literature/Schematics (1)
• Riders 9-21, 22

• Author
• Model page created by a member from D. See "Data change" for further contributors.
