Silvertone 5016 Order=57A 5016
Sears, Roebuck & Co.; Chicago (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Sears, Roebuck & Co.; Chicago (IL)
- Year
- 1965 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 249571
-
- Brand: Silvertone
reconstructed label
- Number of Tubes
- 6
- Valves / Tubes
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast (BC) and FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 60 cycles, 120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Silvertone 5016 Order=57A 5016 - Sears, Roebuck & Co.; Chicago
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Dimensions (WHD)
- 15 x 6 x 5 inch / 381 x 152 x 127 mm
- Notes
-
The Sears Silvertone 5016 is an AC operated 6 tube AM/FM receiver. Has built-in AM and FM antenna's, with provisions for external FM antenna. FM has RF stage and AFC. Has molded-in carrying handle in back.
The following models use the same chassis and schematic:
Model Cabinet 5014 Char Brown/Ivory 5015 Gray-Green/Ivory 5016 Tangerine/Ivory
- Price in first year of sale
- 28.95 $
- Literature/Schematics (2)

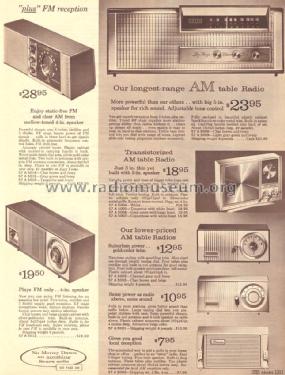

- Sears, Roebuck Catalogs (Silvertone) (Spring/Summer 1965, page 1311.)
- Author
- Model page created by Noemi Erb. See "Data change" for further contributors.
