Silvertone 5022 Order=57A 5022
Sears, Roebuck & Co.; Chicago (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Sears, Roebuck & Co.; Chicago (IL)
- Year
- 1965
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 249894
-
- Brand: Silvertone
- Number of Tubes
- 9
- Valves / Tubes
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast (BC) and FM or UHF.
- Power type and voltage
- AC/DC-set / Either AC: 60 cycles, 110 to 120 or DC: 110 to 120 Volt
- Loudspeaker
- 2 Loudspeakers / Ø 5 inch = 12.7 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: Silvertone 5022 Order=57A 5022 - Sears, Roebuck & Co.; Chicago
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 19.5 x 7.5 x 7 inch / 495 x 191 x 178 mm
- Notes
-

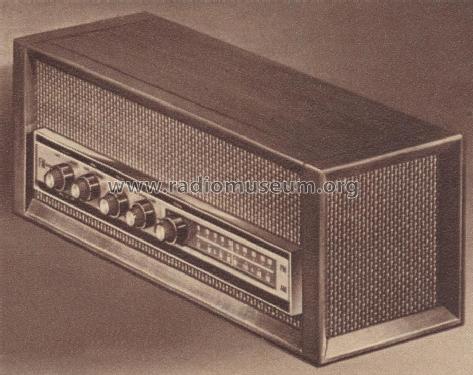

The Sears Silvertone 5022 is an AC/DC operated 9 tube AM, FM and FM stereo receiver. Has Qty(2) PM 5" end mounted speakers. Hand-rubbed walnut veneer, silver colored metal trim with matching grille cloth. FM has AFC. Has phono input jacks and two built-in antenna's with provisions for external FM antenna.
- Price in first year of sale
- 75.00 $
- Literature/Schematics (2)
- Sears, Roebuck Catalogs (Silvertone) (Spring/Summer 1965, page 1310.)
- Author
- Model page created by Noemi Erb. See "Data change" for further contributors.
