Silvertone 5160-2 Ch= 549.16100
Sears, Roebuck & Co.; Chicago (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Sears, Roebuck & Co.; Chicago (IL)
- Year
- 1955 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 263348
-
- Brand: Silvertone
Sams Photofact
Sams Photofact

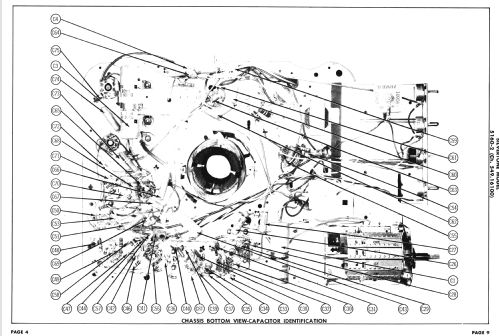

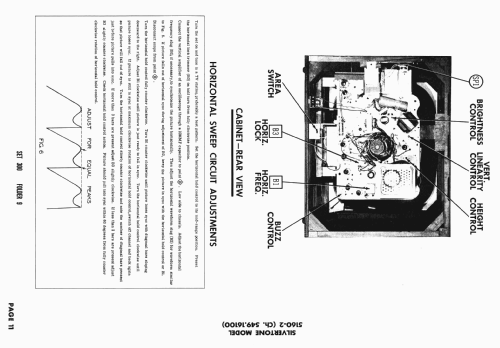

Picture from service manual.

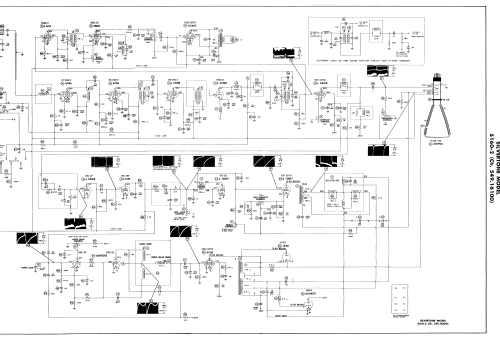

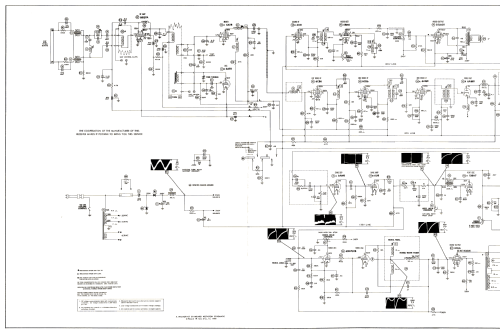

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 15
- Main principle
- Superhet with RF-stage; ZF/IF 45750/41250 kHz
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: Silvertone 5160-2 Ch= 549.16100 - Sears, Roebuck & Co.; Chicago
- Shape
- Tablemodel, with any shape - general.
- Notes
-

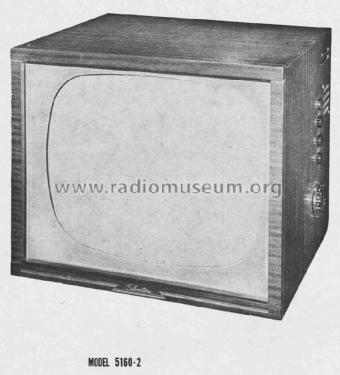

Silvertone model 5160-2 is a 24” b/w TV with US standard VHF tuner channels 2 thru 13.
Equipped with chassis 549.16100, VHF tuner 1D2249 and picture tube 24DP4A.
- Mentioned in
- Photofact Folder, Howard W. SAMS (Set 300 Folder 9 dated 12-55)
