Silvertone 52 Ch= 132.48500 Order=57K 52L
Sears, Roebuck & Co.; Chicago (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Sears, Roebuck & Co.; Chicago (IL)
- Year
- 1959/1960 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 146362
-
- Brand: Silvertone
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz
- Wave bands
- Broadcast only (MW).
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 110 - 120 Volt
- Loudspeaker
- 3 Loudspeakers
- from Radiomuseum.org
- Model: Silvertone 52 Ch= 132.48500 Order=57K 52L - Sears, Roebuck & Co.; Chicago
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 18 x 9 x 21 inch / 457 x 229 x 533 mm
- Notes
-
The Sears Silvertone 52 is an AC operated combination AM receiver with stereo output and 4 speed automatic record changer. The AM band frequency range is 540 to 1670kHz. Sams photofact set 488 folder 12 date 6-60 features the Silvertone models 52 snd 54 as the same schematic.
Model
Cabinet
54
Gray
52
Blue
See details and summaries about Sears catalogs etc. This model was manufactured for Sears by Noblitt-Sparks, Ind. (Sears Manufacturer Source Number Code 132).
- Price in first year of sale
- 109.95 $
- Literature/Schematics (1)

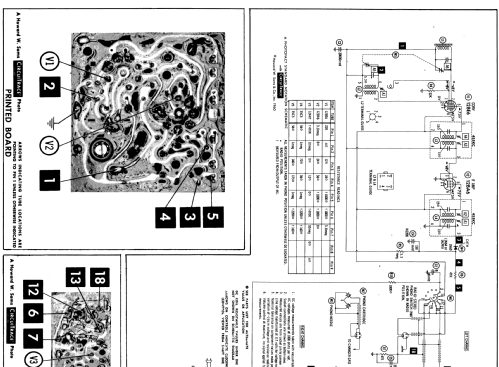

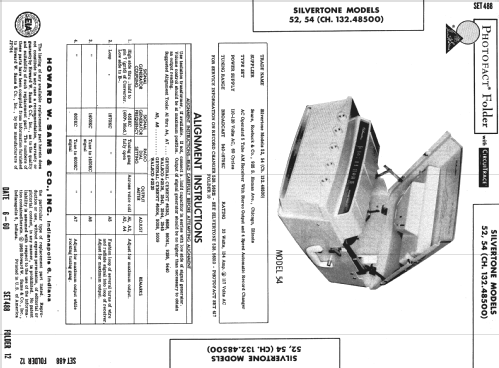

- Photofact Folder, Howard W. SAMS (Set 488 folder 12 date 6-60)
- Literature/Schematics (4)
- Sears, Roebuck Catalogs (Silvertone) (Spring/Summer 1960, page 924.)
- Author
- Model page created by Peter Hoddow. See "Data change" for further contributors.
