Silvertone 6001 Ch= 132.818 with handle

Sears, Roebuck & Co.; Chicago (IL)

Data
Forum
Pictures
Collections

  • Year
  • 1946 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 276808
    • Brand: Silvertone

 Technical Specifications

  • Number of Tubes
  • 4
  • Main principle
  • Superheterodyne (common); ZF/IF 455 kHz
  • Tuned circuits
  • 4 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Alternating Current supply (AC) / 117 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Silvertone 6001 Ch= 132.818 [with handle] - Sears, Roebuck & Co.; Chicago
  • Shape
  • Tablemodel without push buttons, Mantel/Midget/Compact up to 14
  • Dimensions (WHD)
  • 160.5 x 120 x 110 mm / 6.3 x 4.7 x 4.3 inch
  • Notes

  • The Sears Silvertone 6001 is an AC operated 4 tube BC band receiver.  Color is brown.

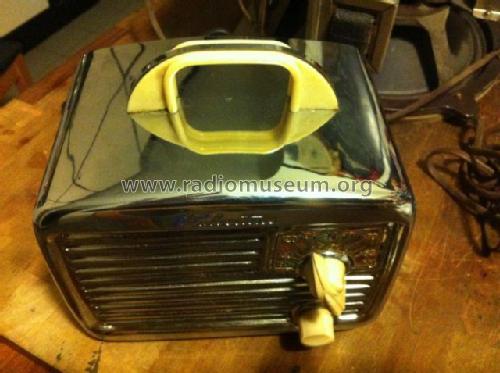

    This version is similar to the Silvertone model 6001 found here, except this version has a handle.  Not sure if the handle is original or not.

    Mentioned in Rider's vol.10, sheet 10-34, but there is no information besides the chassis-No.(101.495; 101.496) which does also not apply to the model. The correct info is found in 15-1.

    See details and summaries about Sears catalogs etc. This model was manufactured for Sears by Noblitt-Sparks Ind. (Arvin), Columbus, Indiana (Sears Manufacturer Source Number Code 132).

  • Author
  • Model page created by Claudio Sicolo. See "Data change" for further contributors.
