• Country
• United States of America (USA)

• Manufacturer / Brand
• Sears, Roebuck & Co.; Chicago (IL)

• Year
• 1955 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 142347

• • Brand: Silvertone

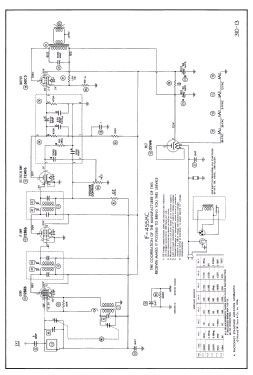

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 12BE6 12BA6 12AV6 50C5 35W4

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Silvertone 6021 Ch= 132.09001 - Sears, Roebuck & Co.; Chicago

• Shape
• Tablemodel with Clock ((Alarm-) Clock Radio).

• Notes

• The Sears, Roebuck & Co, Silvertone Model 6021 is an AC Operated 5 Tube Superheterodyne Receiver with Electric Clock.

• Literature/Schematics (1)

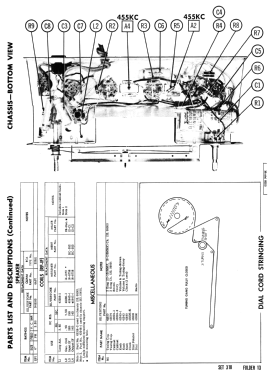

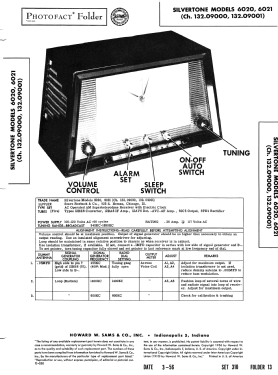

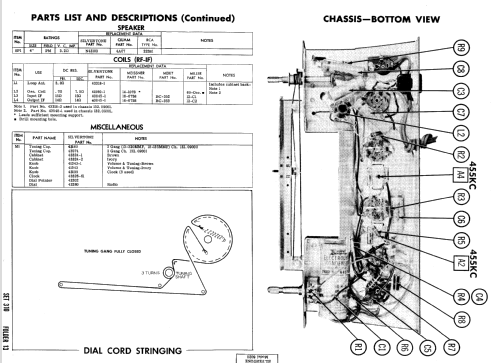

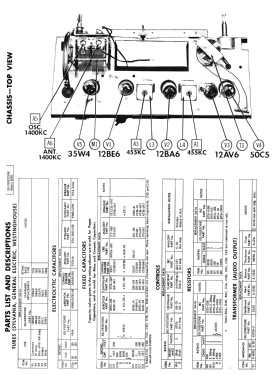

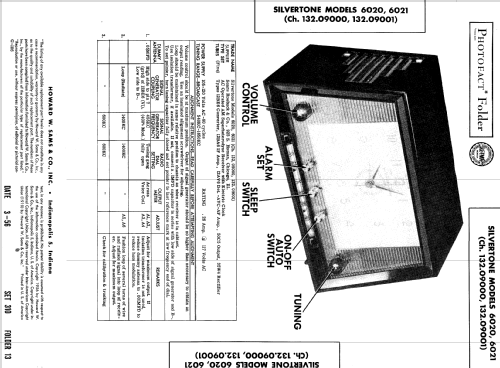

• Photofact Folder, Howard W. SAMS (Date 3-56, Set 310, Folder 13)

• Author
• Model page created by Egon Penker. See "Data change" for further contributors.
