• Country
• United States of America (USA)

• Manufacturer / Brand
• Sears, Roebuck & Co.; Chicago (IL)

• Year
• 1966

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 256200

• • Brand: Silvertone

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 9

• Valves / Tubes

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 60 cycles, 110-120 Volt

• Loudspeaker
• 2 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org
• Model: Silvertone 6021 Order=57P 6021 - Sears, Roebuck & Co.; Chicago

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 19 x 9 x 5.5 inch / 483 x 229 x 140 mm

• Notes

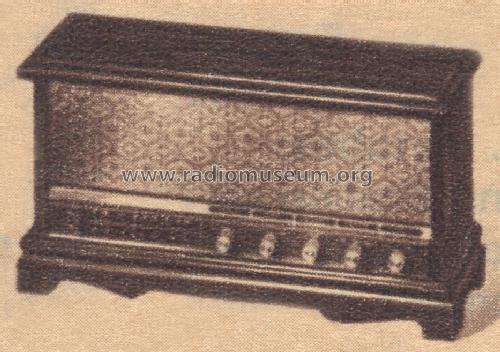

• The Sears Silvertone 6021 is an AC operated 9 tube AM/FM receiver.  Uses Qty(1) Elliptical PM 7" x 5" speaker and Qty(1) PM 4" speaker.  AFC on FM band. Also has tone control, phonograph input jack and brown speaker grille.

  The following models use the same schematic and chassis but have different cabinets:

  Model	Cabinet
  6020	Walnut-finish plastic cabinet
  6021	Solid maple cabinet



• Price in first year of sale
• 62.95 $

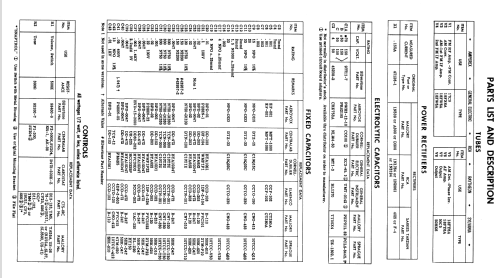

• Literature/Schematics (2)
• Sears, Roebuck Catalogs (Silvertone) (Spring/Summer 1966, page 789.)

• Author
• Model page created by Noemi Erb. See "Data change" for further contributors.
