Silvertone 6043 Ch= 528.63160 Order=57P 6043
Sears, Roebuck & Co.; Chicago (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Sears, Roebuck & Co.; Chicago (IL)
- Year
- 1966
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 256029
-
- Brand: Silvertone
- Number of Transistors
- 7
- Semiconductors
- Main principle
- Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Alternating Current supply (AC) / 60 cycles, 110-120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Silvertone 6043 Ch= 528.63160 Order=57P 6043 - Sears, Roebuck & Co.; Chicago
- Shape
- Tablemodel with Clock ((Alarm-) Clock Radio).
- Dimensions (WHD)
- 15 x 7 x 5 inch / 381 x 178 x 127 mm
- Notes
-

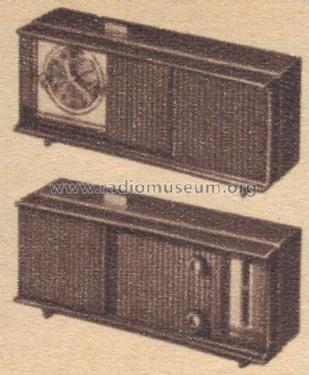

The Sears Silvertone 6043 is an AC operated, 7 transistor AM band clock radio. The AM band frequency tuning range is 540-1620kHz. Has 1100 Watt appliance outlet on back of radio that is controlled from the clock. Uses Elliptical PM 3" x 5" speaker. Has magic glow clock face and dark brown plastic cabinet.
See details and summaries about Sears catalogs etc. This model was manufactured for Sears by Warwick Electronics, Chicago Ill. (Sears Manufacturer Source Number Code 528).
- Price in first year of sale
- 33.95 $
- Literature/Schematics (1)
- Photofact TSM Transistor Radio Series SAMS (TSM-61, pages 91-96)
- Literature/Schematics (2)
- Sears, Roebuck Catalogs (Silvertone) (Spring/Summer 1966, page 788.)
- Author
- Model page created by Noemi Erb. See "Data change" for further contributors.
