Silvertone 6046 Ch= 528.34900 Order=57H 06046L AC

Sears, Roebuck & Co.; Chicago (IL)

Data
Forum
Pictures
Collections

  • Year
  • 1955/1956
perfect model
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 130177
    • Brand: Silvertone

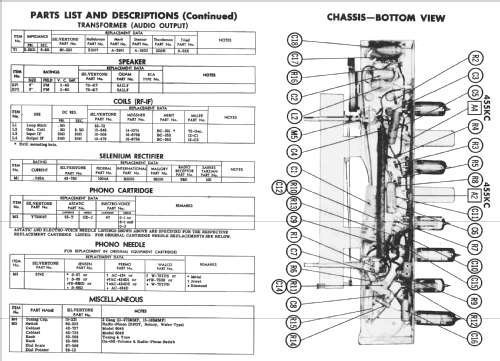

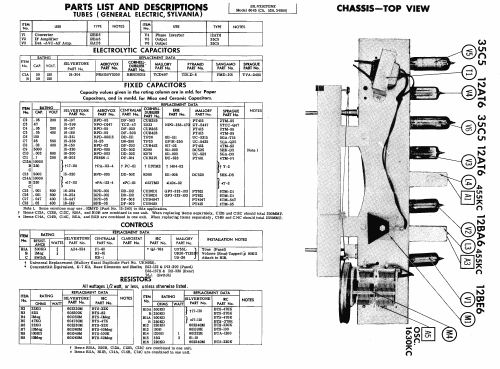

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 6
  • Main principle
  • Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Details
  • Changer (Record changer)
  • Power type and voltage
  • Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt
  • Loudspeaker
  • 2 Loudspeakers / Ø 6 inch = 15.2 cm
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Silvertone 6046 Ch= 528.34900 Order=57H 06046L [AC] - Sears, Roebuck & Co.; Chicago
  • Shape
  • Tablemodel, Box - most often with Lid (NOT slant panel).
  • Dimensions (WHD)
  • 17.25 x 11.75 x 18.75 inch / 438 x 298 x 476 mm
  • Notes

  • The Silvertone High Fidelity model 6045 and this Silvertone model 6046 from Sears, Roebuck & Co. with chassis 528.34900 are AC operated radio-phono combinations with a 3 speed automatic record changer, built in loop antenna, Selenium Rectifier and Push-pull output stage. The slightly earlier models, Silvertone 5045 and 5046 have the same chassis. On the case there you find the writing "High Fidelity".

    There are also pre war models Silvertone 6045 and pre war Silvertone 6046 - quite different and without phono-combination.

    Limed oak.

  • Author
  • Model page created by Ernst Erb. See "Data change" for further contributors.
