• Country
• United States of America (USA)

• Manufacturer / Brand
• Sears, Roebuck & Co.; Chicago (IL)

• Year
• 1956 ?

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 306967

• • Brand: Silvertone

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 16

• Valves / Tubes
• 6BZ7 6J6 6CB6 6CB6 6AM8 6AW8 6AV6 6U8 6T8 6K6GT 12BH7 6SN7GT 6AV5GT 6AX4GT 1B3GT 24YP4

• Main principle
• Superhet with RF-stage

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Silvertone 6128 Ch= 528.38400 - Sears, Roebuck & Co.; Chicago

• Shape
• Console, Lowboy (legs < 50 %).

• Notes

• Silvertone model 6128 is a 24" b/w TV with US standard VHF tuner channels 2 thru 13. Equipped with chassis 528.38400, VHF tuner 95-43 and picture tube 24YP4.

• Literature/Schematics (1)

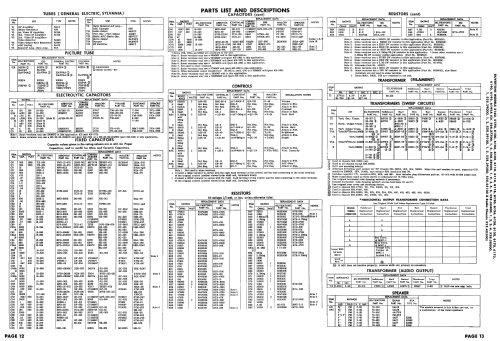

• Photofact Folder, Howard W. SAMS (Set 325 Folder 12 dated 8-56)

• Author
• Model page created by Dirk Taekels. See "Data change" for further contributors.
