Silvertone 6193 Ch= 101.517-1

Sears, Roebuck & Co.; Chicago (IL)

Data
Forum
Pictures
Collections

  • Year
  • 1938 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 234795
    • Brand: Silvertone

 Technical Specifications

  • Number of Tubes
  • 13
  • Main principle
  • Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
  • Tuned circuits
  • 9 AM circuit(s)
  • Wave bands
  • Broadcast plus more than 2 Short Wave bands.
  • Power type and voltage
  • Alternating Current supply (AC) / 105-125 Volt
  • Loudspeaker

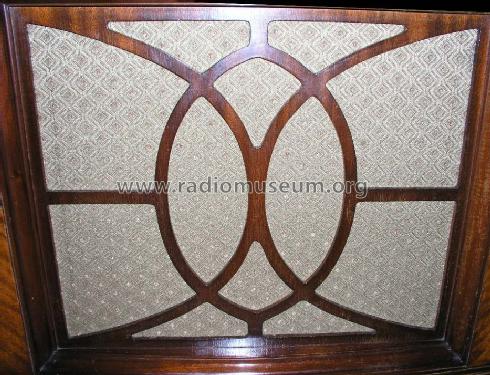

  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 12 inch = 30.5 cm
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Silvertone 6193 Ch= 101.517-1 - Sears, Roebuck & Co.; Chicago
  • Shape

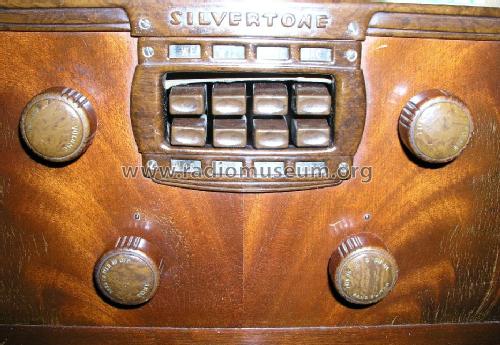

  • Console with Push Buttons.
  • Dimensions (WHD)
  • 35 x 34 x 14 inch / 889 x 864 x 356 mm
  • Notes

  • Tuning Eye is not used in traditional fashion. The lighted side is at the bottom, and the tuning peak is considered to occur when the left-side dark area is the smallest.

    There are 5 Bands: AM; 6-18 MC; 9.4-9.7 MC; 11.5-12.1MC; 14.5-15.9MC

    Phono Input on rear of chassis, with selector switch.

    Antenna: Sears "Matched-Doublet Antenna recommended", but can be used with Single-wire antenna at least 50 feet long.

    Also, requires a "Water-pipe Ground".

  • Net weight (2.2 lb = 1 kg)
  • 45 lb 0 oz (45 lb) / 20.430 kg
  • Mentioned in
  • - - Manufacturers Literature
  • Author
  • Model page created by Michael DeFazio Sr.. See "Data change" for further contributors.
