Silvertone 6201 Ch= 132.90201 Order=57P 6201

Sears, Roebuck & Co.; Chicago (IL)

Data
Forum
Pictures
Collections

  • Year
  • 1966
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 255736
    • Brand: Silvertone

 Technical Specifications

  • Number of Transistors
  • 6
  • Semiconductors
  • Main principle
  • Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
  • Tuned circuits
  • 5 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Dry Batteries
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 2.25 inch = 5.7 cm
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Silvertone 6201 Ch= 132.90201 Order=57P 6201 - Sears, Roebuck & Co.; Chicago
  • Shape
  • Very small Portable or Pocket-Set (Handheld) < 8 inch.
  • Dimensions (WHD)
  • 2.5 x 4 x 1.25 inch / 64 x 102 x 32 mm
  • Notes

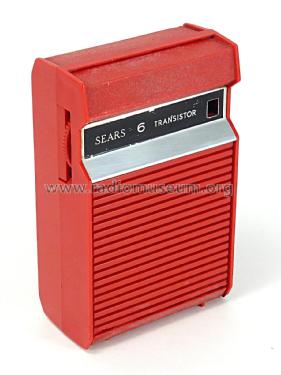

  • The Sears Silvertone 6201 is a battery operated 6 transistor portable AM radio.  The AM band frequency tuning range is 540-1620kHz.  Has push-pull output stage and earphone jack that disconnects the speaker for private listening. Has red plastic cabinet.

    See details and summaries about Sears catalogs etc. This model was manufactured for Sears by Noblitt-Sparks Ind. (Arvin), Columbus, Indiana (Sears Manufacturer Source Number Code 132).

    Made in Hong Kong

  • Price in first year of sale
  • 5.39 $
  • Author
  • Model page created by Noemi Erb. See "Data change" for further contributors.
