Silvertone 6216 Ch= 528.33300 Order=75H U6216

Sears, Roebuck & Co.; Chicago (IL)

Data
Forum
Pictures
Collections

  • Year
  • 1955/1956
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 234641
    • Brand: Silvertone

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 4
  • Main principle
  • Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Line / Batteries (any type) / Either 60 cycles, 110 to 120V or DC 110 to 120V or batteries 67.5 & 3 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 3.5 inch = 8.9 cm
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Silvertone 6216 Ch= 528.33300 Order=75H U6216 - Sears, Roebuck & Co.; Chicago
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 9.5 x 6.75 x 3.5 inch / 241 x 171 x 89 mm
  • Notes

  • The Sears Silvertone 6216 is an AC/DC/Battery operated 4 tube portable BC band receiver.  Has built-in loop stick antenna. Cabinet color is Gray.

    Sams list only models 6217 and 6218, however model 6216 is similar except for the cabinet color, which is Gray.

    The following models use the same schematic and cabinet but have different cabinet colors:

    Model Number Cabinet Color
    6216 Gray
    6217 Red
    6218 Green

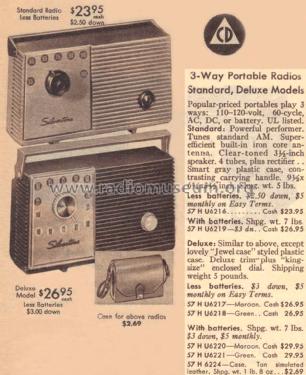

    See details and summaries about Sears catalogs etc. This model was manufactured for Sears by Warwick Electronics Inc., Chicago, Ill (Sears Manufacturer Source Number Code 528).

  • Author
  • Model page created by John Kusching. See "Data change" for further contributors.
