• Country
• United States of America (USA)

• Manufacturer / Brand
• Sears, Roebuck & Co.; Chicago (IL)

• Year
• 1946 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 134511

• • Brand: Silvertone

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 1LG5 1LC6 1LC5 1LD5 1LB4

• Main principle
• Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Storage and/or dry batteries / 1.5 & 90 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5.25 inch = 13.3 cm

• Material
• Wooden case

• from Radiomuseum.org
• Model: Silvertone 6220A Ch= 101.801-1A - Sears, Roebuck & Co.; Chicago

• Shape
• Tablemodel, with any shape - general.

• Notes

• The Sears Silvertone 6220A is a battery operated 5 tube BC band Farm Radio.  Uses Silvertone "A-B" Battery Pack #6300 or equivalent.

  See details and summaries about Sears catalogs etc. This model was manufactured for Sears by Colonial Radio Corp., Buffalo, NY (Sears Manufacturer Source Number Code 101).

• Literature/Schematics (1)

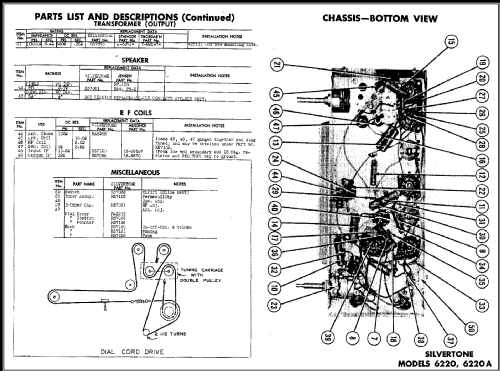

• Photofact Folder, Howard W. SAMS (Dat 12-46, set 9, folder 469-30)

• Author
• Model page created by Egon Penker. See "Data change" for further contributors.
