• Country
• United States of America (USA)

• Manufacturer / Brand
• Sears, Roebuck & Co.; Chicago (IL)

• Year
• 1966

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 118961

• • Brand: Silvertone

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 12

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Dry Batteries / 6 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

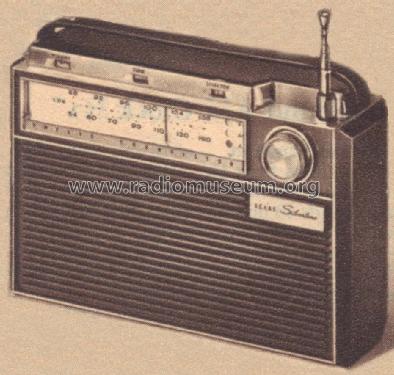

• Model: Silvertone 6226 Ch= 132.91201 Order=57P 6226 - Sears, Roebuck & Co.; Chicago

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 9 x 6.5 x 3 inch / 229 x 165 x 76 mm

• Notes
• FM AFC, built-in telescopic antenna, jack for ext. AC adapter.

• Price in first year of sale
• 35.95 $

• Source of data
• - - Manufacturers Literature

• Literature/Schematics (1)

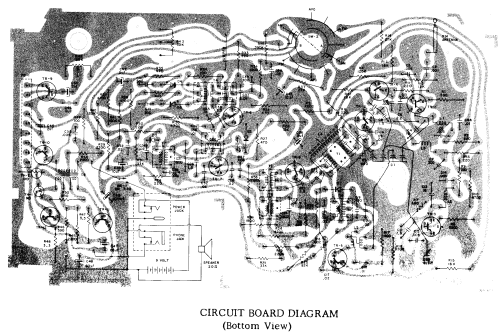

• -- Schematic

• Literature/Schematics (4)

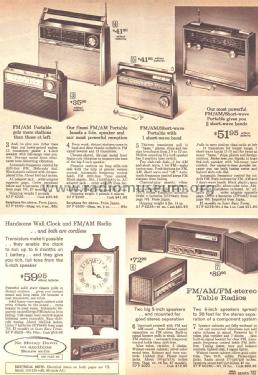

• Sears, Roebuck Catalogs (Silvertone) (Spring/Summer 1966, page 787.)

• Author
• Model page created by a member from A. See "Data change" for further contributors.
