• Country
• United States of America (USA)

• Manufacturer / Brand
• Sears, Roebuck & Co.; Chicago (IL)

• Year
• 1957

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 141665

• • Brand: Silvertone

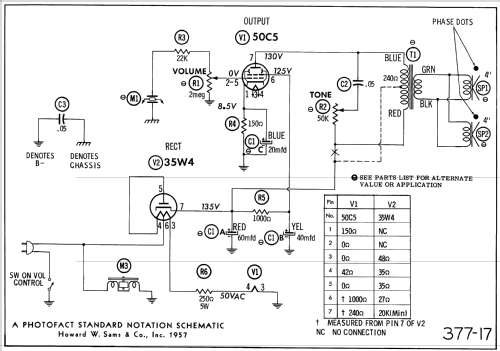

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 2

• Valves / Tubes
• 50C5 35W4

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Rec.Player+Audio.Amp+LS

• Power type and voltage
• Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt

• Loudspeaker
• 2 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org
• Model: Silvertone 6240 Ch= 567.36004 - Sears, Roebuck & Co.; Chicago

• Shape
• Tablemodel, Box - most often with Lid (NOT slant panel).

• Notes

• Silvertone model 6240 is an AC operated 2 tube phono amplifier .



• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Date 11-57, Set 377, Folder 17)

• Author
• Model page created by Egon Penker. See "Data change" for further contributors.
