• Country
• United States of America (USA)

• Manufacturer / Brand
• Sears, Roebuck & Co.; Chicago (IL)

• Year
• 1959/1960 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 144328

• • Brand: Silvertone

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 16

• Valves / Tubes
• 6EZ8 6AU6 6BE6 6BA6 EM84 6AU6 6AL5 7025 12AU7A 7025 7025 6V6GT 6V6GT 6V6GT 6V6GT 5U4GB

• Main principle
• Superheterodyne (common); ZF/IF 455/10700 kHz

• Wave bands
• Broadcast (BC) and FM or UHF.

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 110 - 120 Volt

• Loudspeaker
• 4 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org
• Model: Silvertone 69 Order=57K 69NR - Sears, Roebuck & Co.; Chicago

• Shape
• Console, Lowboy (legs < 50 %).

• Dimensions (WHD)
• 32 x 33 x 17 inch / 813 x 838 x 432 mm

• Notes

• AC operated AM - FM receiver with 4 speed automatic record changer.
  Tuner ch= 528.53560;
  Preamp ch= 528.59460;
  Amplifier ch= 528.59440.

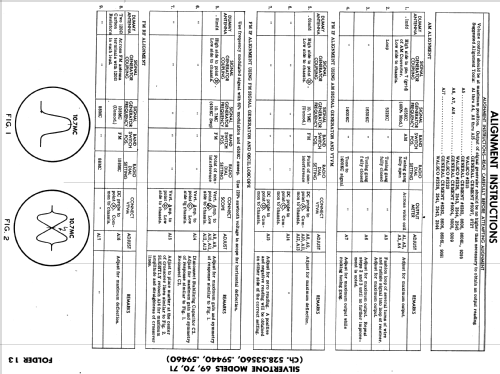

  Sams photofact set 474 folder 13 date 2-60 features the Silvertone models 69, 70 and 71 as the same schematic.

  Model	Cabinet
  69	Mahogany Veneer
  70	Limed Oak Veneer
  71	Walnut Veneer



• Price in first year of sale
• 287.95 $

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Set 474 folder 13 date 2-60)

• Literature/Schematics (4)
• Sears, Roebuck Catalogs (Silvertone) (Spring/Summer 1960, page 923.)

• Author
• Model page created by Peter Hoddow. See "Data change" for further contributors.
