• Country
• United States of America (USA)

• Manufacturer / Brand
• Sears, Roebuck & Co.; Chicago (IL)

• Year
• 1961

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 217924

• • Brand: Silvertone

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 6

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 5 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Dry Batteries / 1 x 9 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 2.25 inch = 5.7 cm

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Silvertone 2202 Ch= 132.62901 Order=57G 2202 - Sears, Roebuck & Co.; Chicago

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 2.75 x 4.25 x 1.5 inch / 70 x 108 x 38 mm

• Notes

• The Sears Silvertone 2202 is a battery operated 6 transistor portable AM radio.  AM band tuning range is 540 - 1670kHz.  Uses Qty(1) 9V mercury battery.  Has push-pull output stage and earphone jack for private listening. The battery, earphone and tan leather case were sold separately.

  The following models use the same schematic and cabinet but have different cabinet colors:

  Model	Cabinet
  2202	Black
  2203	Mint Green
  2204	Red

  See details and summaries about Sears catalogs etc. This model was manufactured for Sears by Noblitt-Sparks Ind. (Arvin), Columbus, Indiana (Sears Manufacturer Source Number Code 132).

• Price in first year of sale
• 15.95 $

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Set 598, Folder 13 Dated 10-62)

• Literature/Schematics (4)

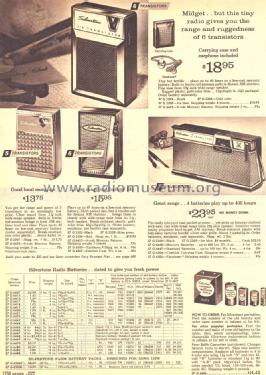

• Sears, Roebuck Catalogs (Silvertone) (Fall/Winter 1961, page 1234.)

• Author
• Model page created by Franz Scharner. See "Data change" for further contributors.
