Silvertone 7007 Ch= 132.98801 Order= 57B 7007
Sears, Roebuck & Co.; Chicago (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Sears, Roebuck & Co.; Chicago (IL)
- Year
- 1967
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 256808
-
- Brand: Silvertone
- Number of Transistors
- 6
- Semiconductors
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 3 AF stage(s)
- Tuned circuits
- 5 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Alternating Current supply (AC) / 60 cycles, 110-120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Silvertone 7007 Ch= 132.98801 Order= 57B 7007 - Sears, Roebuck & Co.; Chicago
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Dimensions (WHD)
- 10 x 8 x 3.5 inch / 254 x 203 x 89 mm
- Notes
-
The Sears Silvertone 7007 is an AC operated 6 transistor AM receiver. Has slim-line plastic cabinet with silver-gold colored metal trim.
The following models use the same schematic and chassis but have different cabinets:
Model Cabinet 7004 Snow white with gold-color grille 7005 Black with gold-color grille 7006 Blue with gold-color grille 7007 Coppertone with gold-color grille WARNING: When servicing this radio, an isolation transformer should be used between the power line and the radio.
See details and summaries about Sears catalogs etc. This model was manufactured for Sears by Noblitt-Sparks Ind. (Arvin), Columbus, Indiana (Sears Manufacturer Source Number Code 132).
- Price in first year of sale
- 17.95 $
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Set 901, folder 6 Dated 8-67)
- Literature/Schematics (2)

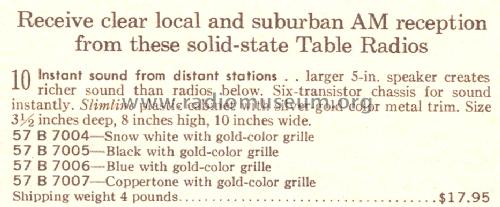

- Sears, Roebuck Catalogs (Silvertone) (Spring/Summer 1967, page 846.)
- Author
- Model page created by Noemi Erb. See "Data change" for further contributors.
