Silvertone 7011
Sears, Roebuck & Co.; Chicago (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Sears, Roebuck & Co.; Chicago (IL)
- Year
- 1933
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 227828
-
- Brand: Silvertone
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 8
- Main principle
- Superheterodyne (common); ZF/IF 525 kHz; 2 AF stage(s)
- Tuned circuits
- 8 AM circuit(s)
- Wave bands
- Broadcast plus more than 2 Short Wave bands.
- Power type and voltage
- Alternating Current supply (AC) / 60 cycle, 115 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- from Radiomuseum.org
- Model: Silvertone 7011 - Sears, Roebuck & Co.; Chicago
- Notes
-
The Sears Silvertone 7011 is an AC operated 8 tube BC and SW band receiver.
The chassis and schematic used in this model is also used in models 7007 and 7013.
See details and summaries about Sears catalogs etc. This model was manufactured for Sears by Sentinel Radio Corp., Chicago, Ill (Sears Manufacturer Source Number Code 106).

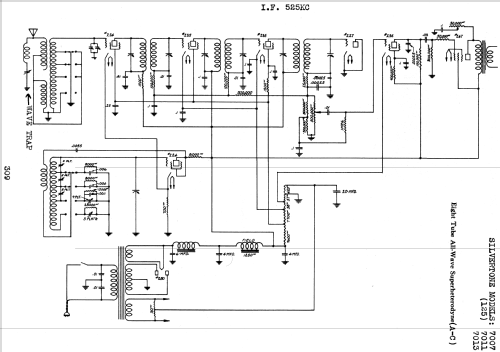

The schematic from the Sears Silvertone Service Information Book is the same as the schematic of the Sentinel 125, which can be found in Riders Sentinel 5-5.
- Literature/Schematics (1)
- Silvertone Radios, Service Inf. 1928 thru 1936 (Pages 309 to 310)
- Literature/Schematics (2)
- Rider's Perpetual, Volume 5 = ca. 1934 and before (Riders Sentinel 5-5)
- Author
- Model page created by John Kusching. See "Data change" for further contributors.
