Silvertone 7011 Ch= 132.40000
Sears, Roebuck & Co.; Chicago (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Sears, Roebuck & Co.; Chicago (IL)
- Year
- 1957 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 271934
-
- Brand: Silvertone
Aus Photfact Folder

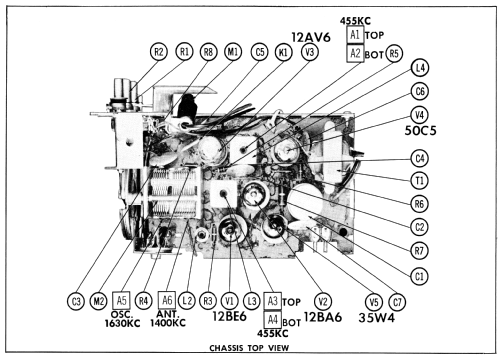

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- AC/DC-set / 110-120 Volt
- Loudspeaker
- 2 Loudspeakers / Ø 4 inch = 10.2 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: Silvertone 7011 Ch= 132.40000 - Sears, Roebuck & Co.; Chicago
- Shape
- Tablemodel, with any shape - general.
- Notes
-
AC-DC Operated AM Receiver. Tuning Range: 535-1630 kHz.
Silvertone model 7011 is in Ivory finish $26.95
- Mentioned in
- Photofact Folder, Howard W. SAMS (Set 352, Folder 13, Date 3-57)

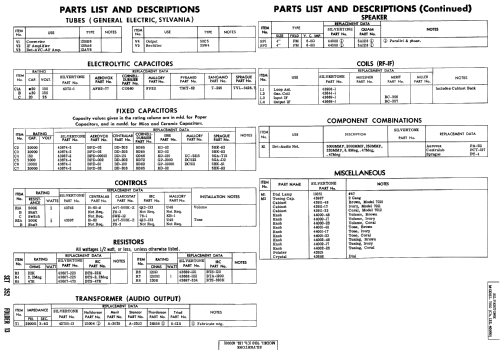

- Literature/Schematics (1)
- Machine Age to Jet Age II (page 270)
- Literature/Schematics (2)
- Sears, Roebuck Catalogs (Silvertone) (page 866)
- Author
- Model page created by Arpad Roth † 27.3.17. See "Data change" for further contributors.
