Silvertone 7033 Ch= 528.63600 Order= 57B 7033
Sears, Roebuck & Co.; Chicago (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Sears, Roebuck & Co.; Chicago (IL)
- Year
- 1967
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 256529
-
- Brand: Silvertone
The decal under the speaker is not original
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 5 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Alternating Current supply (AC) / 60 cycles, 110-120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Silvertone 7033 Ch= 528.63600 Order= 57B 7033 - Sears, Roebuck & Co.; Chicago
- Shape
- Tablemodel with Clock ((Alarm-) Clock Radio).
- Dimensions (WHD)
- 14.25 x 6.5 x 6 inch / 362 x 165 x 152 mm
- Notes
-

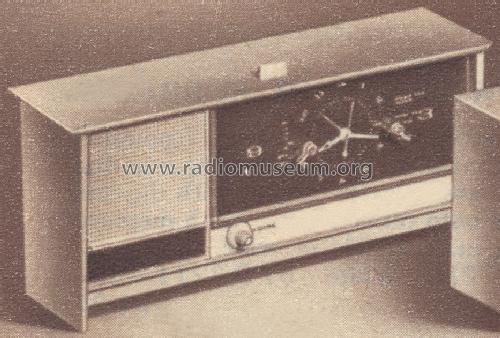

The Sears Silvertone 7033 is an AC Operated 5 Tube AM Clock Radio.
The following models use the same schematic and cabinets but have different cabinet colors:
Model Cabinet Colors 7033 Ivory 7034 Fern Green 7035 Beige
- Net weight (2.2 lb = 1 kg)
- 3 lb 10 oz (3.625 lb) / 1.646 kg
- Price in first year of sale
- 16.95 $
- Literature/Schematics (4)

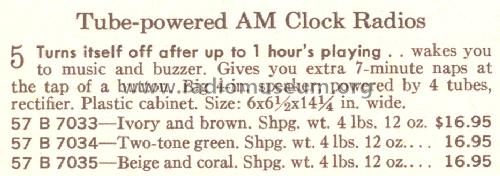

- Sears, Roebuck Catalogs (Silvertone) (Spring/Summer 1967, page 847.)
- Author
- Model page created by John Kusching. See "Data change" for further contributors.
