• Country
• United States of America (USA)

• Manufacturer / Brand
• Sears, Roebuck & Co.; Chicago (IL)

• Year
• 1956 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 243144

• • Brand: Silvertone

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 11

• Valves / Tubes
• 6CB6 6U8 6BA6 6BA6 6E5 6AL5 6AV6 12AX7 6V6GT 6V6GT 5U4G

• Main principle
• Superhet with RF-stage; ZF/IF 455/10700 kHz

• Tuned circuits
• 7 AM circuit(s)     9 FM circuit(s)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Details
• Changer (Record changer); Hi-Fi equipment

• Power type and voltage
• Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt

• Loudspeaker
• 3 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org
• Model: Silvertone 7061 Ch= 528.46200 [Mahogany] - Sears, Roebuck & Co.; Chicago

• Shape
• Console, Lowboy (legs < 50 %).

• Notes

• Silvertone model 7061 is an AC operated FM-AM receiver with tape recorder & 4 speed automatic record changer.Since there is no clarity in the Sams service documentation about the receiver, the tape recorder, the record player and the amplifier used in the different models, we provide a list of the options below.

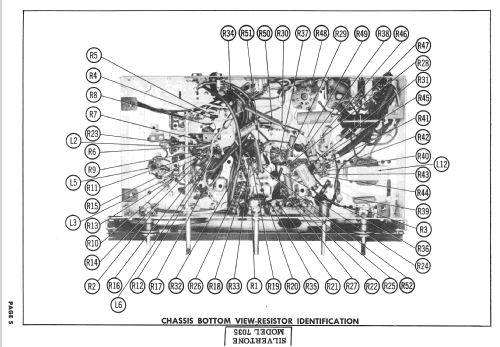

  Receiver chassis : 528.46200, 528.46220
  Recorder Amp chassis : 567.35015
  Tape recorder chassis : 567.34013
  Record changer chassis : 567.41002, 567.41015, 567.41102, 567.41110.




• Literature/Schematics (1)
• - - Manufacturers Literature

• Literature/Schematics (2)

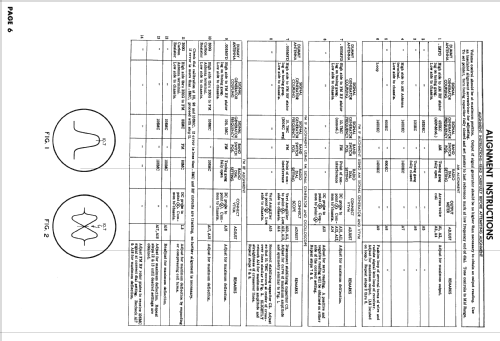

• Photofact Folder, Howard W. SAMS (Set 366 Folder 11 dated 8-57)

• Author
• Model page created by Chris Humiston. See "Data change" for further contributors.

• Other Models

• Here you find 5479 models, 3211 with images and 4185 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Sears, Roebuck & Co.; Chicago (IL)
