• Country
• United States of America (USA)

• Manufacturer / Brand
• Sears, Roebuck & Co.; Chicago (IL)

• Year
• 1957 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 311352

• • Brand: Silvertone

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 22

• Valves / Tubes
• 6CB6 6U8 6BA6 6BA6 6BA6 6AL5 6AU6 6AU6 6AL5 12AY7 12AU7 12AU7 12AU7 12AU7 6L6GB 6L6GB 5U4GB 12AU7A 12AX7 12AU7A 6V6GT 6X5GT

• Main principle
• Superheterodyne (common); ZF/IF 455/10700 kHz

• Wave bands
• Broadcast (BC) and FM or UHF.

• Details
• Changer + Tape Recorder; Hi-Fi equipment

• Power type and voltage
• Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Silvertone 7065 or 7066 - Sears, Roebuck & Co.; Chicago

• Shape
• Console, Lowboy (legs < 50 %).

• Notes

• Silvertone model 7065 is an AC operated FM-AM tuner with audio amplifier, tape recorder and 4 speed automatic record changer. See also some other Silvertone 7065 models before uploading pictures.

• Literature/Schematics (1)

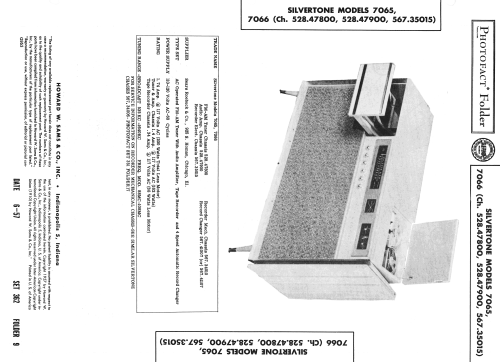

• Photofact Folder, Howard W. SAMS (Set 362 Folder 9 dated 6-57)

• Author
• Model page created by Dirk Taekels. See "Data change" for further contributors.
