• Country
• United States of America (USA)

• Manufacturer / Brand
• Sears, Roebuck & Co.; Chicago (IL)

• Year
• 1957 ?

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 317051

• • Brand: Silvertone

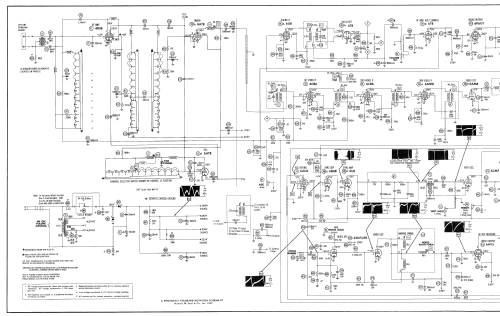

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 16

• Valves / Tubes
• 6BS8 6AT8 6CB6 6CB6 6AM8 6BA8 6AU6 6U8 6T8 6V6GT 6CM7 6SN7GTB 6AU5 6AX4GT 1B3GT 17AVP4A

• Main principle
• Superhet with RF-stage

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt

• Loudspeaker
• Ø 5 inch = 12.7 cm

• Material
• Wooden case

• from Radiomuseum.org
• Model: Silvertone 7106A Ch= 528.49200 - Sears, Roebuck & Co.; Chicago

• Shape
• Tablemodel, with any shape - general.

• Notes

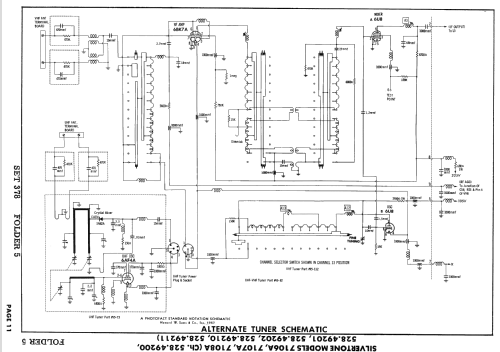

• Silvertone model 7106A is a 17" b/w TV with US standard VHF tuner channels 2 thru 13. Equipped with chassis 528.49200, VHF tuner 95-75 and picture tube 17AVP4.



• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Set 378 Folder 5 dated 11-57)

• Author
• Model page created by Dirk Taekels. See "Data change" for further contributors.
