Silvertone 7113 Ch= 528.50014
Sears, Roebuck & Co.; Chicago (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Sears, Roebuck & Co.; Chicago (IL)
- Year
- 1956 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 283760
-
- Brand: Silvertone

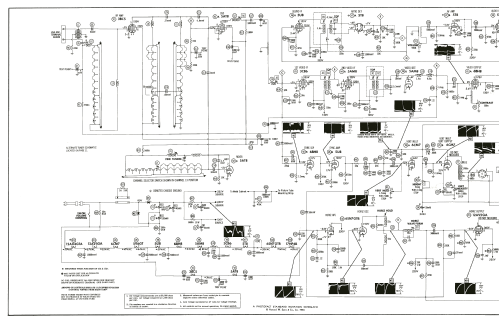

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 15
- Valves / Tubes
- 5BK7A 5U8 6AF4A 3CB6 6AM8 6BH8 5U8 5T8 or 6BN8 5V6GT 6CM7 6SN7GTB 12AV5GA 12AX4GTA or 12AX4GTB 1B3GT 17HP4B
- Main principle
- Superhet with RF-stage
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 60 cycle 110-120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
- Material
- Metal case
- from Radiomuseum.org
- Model: Silvertone 7113 Ch= 528.50014 - Sears, Roebuck & Co.; Chicago
- Shape
- Tablemodel, with any shape - general.
- Notes
-
The SILVERTONE model 7113 is a 17" b/w TV with US standard VHF Tuner channels 2 thru 13, 14 thru 83 UHF.Equipped with VHF tuner 95-76, UHF tuner 95-86, chassis 528.50014 and picture tube 17HP4B.
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Set 339 Folder 13 dated 12-56)
- Author
- Model page created by Dirk Taekels. See "Data change" for further contributors.
